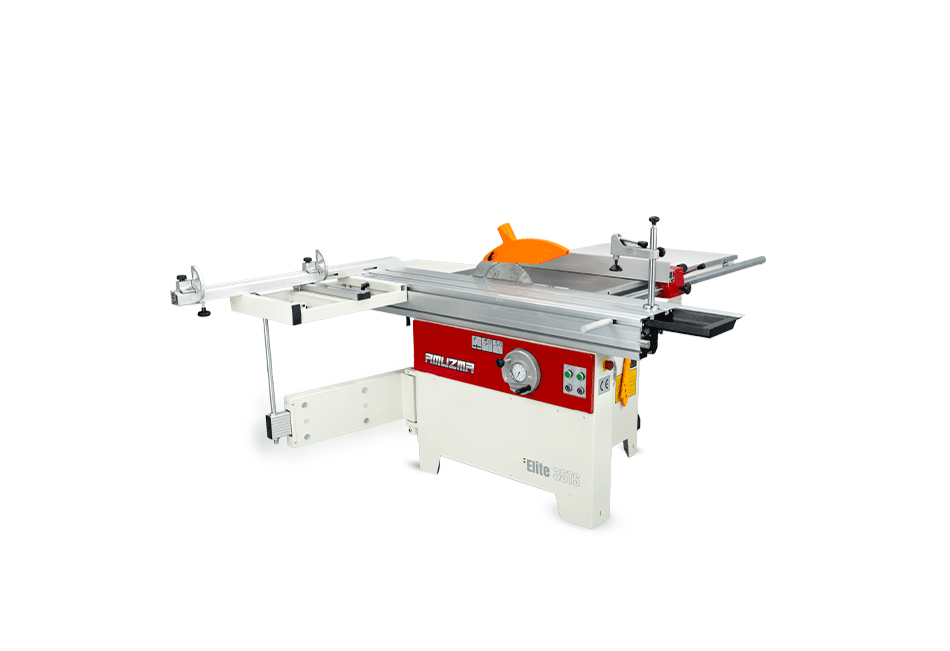

PANEL SAW

Elite 35TS

Click ‘Get Free Quote’ to customize

Compact Design. Full Performance. Built to Last

Elite 35TS delivers precision cutting power in a compact design, combining durability, stability, and professional performance for any workshop space.

Compact Design

Maximizes workshop space while delivering full panel saw power, precision cutting, and reliable professional performance daily with exceptional efficiency and control.

Steel Frame

Heavy-gauge steel construction ensures strength, long-lasting durability, vibration control, and stable cutting accuracy under pressure.

Cast Iron Table

Precision-ground cast iron surface provides smooth material support, reduces vibration, and improves cutting consistency significantly.

True Trunnion

Advanced trunnion system guarantees smooth blade movement, enhanced control, and exceptionally accurate cutting results every time.

Space Optimization

Compact footprint saves valuable workshop floor space while delivering full panel saw capability and uncompromised cutting performance.

Superior Cutting Accuracy

Advanced trunnion system and cast iron table ensure stable operation, reduced vibration, and consistently precise cutting results.

Long-Term Durability

Heavy-gauge steel construction provides exceptional strength, reliability, and long-lasting performance in demanding professional workshop environment

Panel Saw 12 Elite 35ts

Add to quote

Operational

Cutting
Footprint
Durability
Stability

Accurate, smooth, and vibration-free cutting performance.

Engineered with a true panel saw trunnion system and heavy cast iron table, the 35TS ensures stable blade movement and exceptional cutting accuracy. It minimizes vibration during operation, delivering clean edges and precise results whether cutting large panels or solid timber sections.

Accurate, smooth, and vibration-free cutting performance.

Space-efficient design without compromising power

Designed for workshops where floor space is valuable, the Elite 35TS offers full-sized panel saw capabilities in a compact layout. Its intelligent design maximizes productivity while maintaining a minimal footprint, making it ideal for both small and growing workshops.

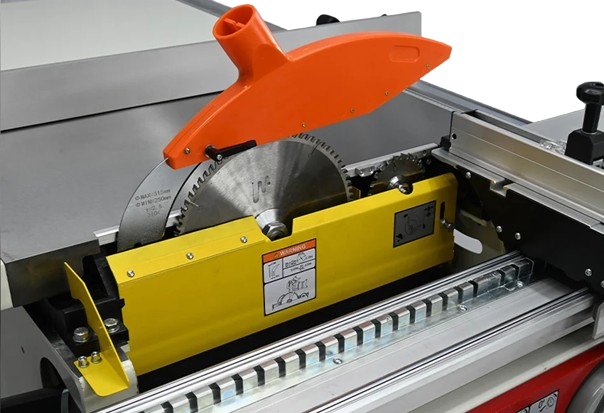

Robust steel chassis for long-term durability

Built on a high-quality, heavy-gauge steel frame, this machine provides outstanding structural strength and stability. The rigid construction reduces flex and movement, ensuring consistent performance even under demanding, continuous workloads.

Stable performance for consistent professional results.

The precision-balanced components and cast iron working surface allow effortless material handling and smooth blade travel. This ensures controlled operation, reduced operator fatigue, and reliable accuracy across repeated cutting tasks.

Specifications

Main Blade Diameter : 315 mm
Main Blade Speed : 4500 rpm
Scoring Blade Diameter : 120 mm
Scoring Blade Speed : 8000 rpm
Blade Tilt : 0 – 45°
Max Depth of Cut @ 45° : 67 mm
Max Depth of Cut @ 90° : 95 mm
Max Rip Capacity
Standard : 1250 mm
Option : 900 mm
Sliding Beam Size
Standard : 1600 × 360 mm
Option : 1200 × 360 mm

Sliding Beam Cutting Capacity
Standard : 1600 mm
Option : 1250 mm
Table Size : 800 × 550 mm
Dust Extraction Outlet : 120 mm
Main Motor Output
3 × 380V : 5 kW
Scoring Motor Output : 0.75 kW
Angle Cutting Device : 940 × 150 × 1500 mm / 44.5 kg
Net / Gross Weight : 400 / 460 kg
Package Size : 1300 × 1000 × 1100 mm

Machine Dimensions

For the Panel Saw 12″ Elite 35TS, typical machine overall dimensions (comparable to similar industrial panel saw models) are approximately: 📏 Machine Dimensions (L × W × H): ≈ 3400 × 3700 × 1300 mm (Length × Width × Height) These dimensions reflect a standard sliding table panel saw layout that supports large panel handling while fitting into a professional workshop space.

Product Video

Reach Out To Us!

Parts

Main Saw Blade

Scoring Blade

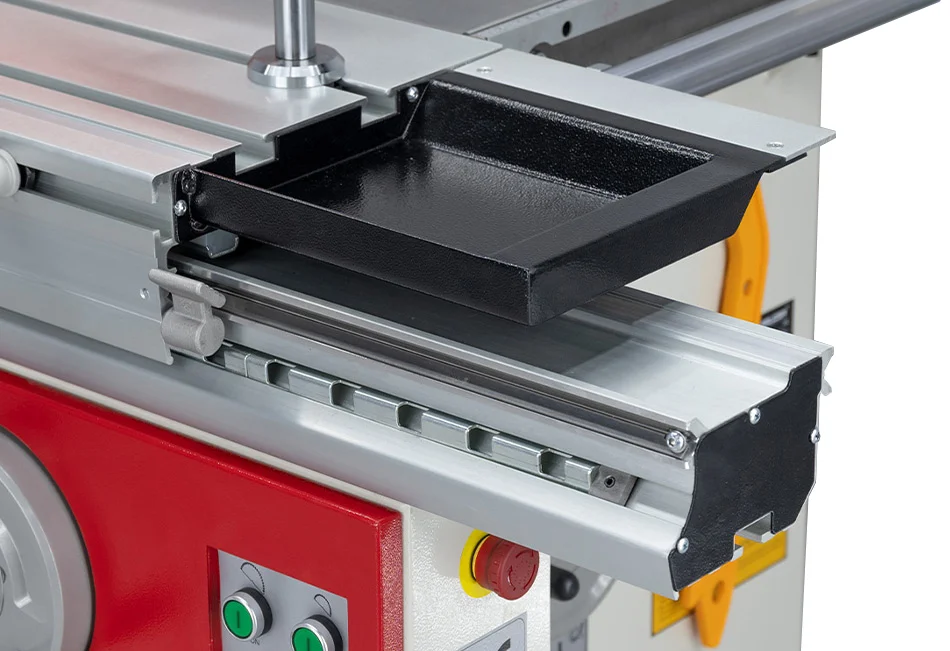

Sliding Table

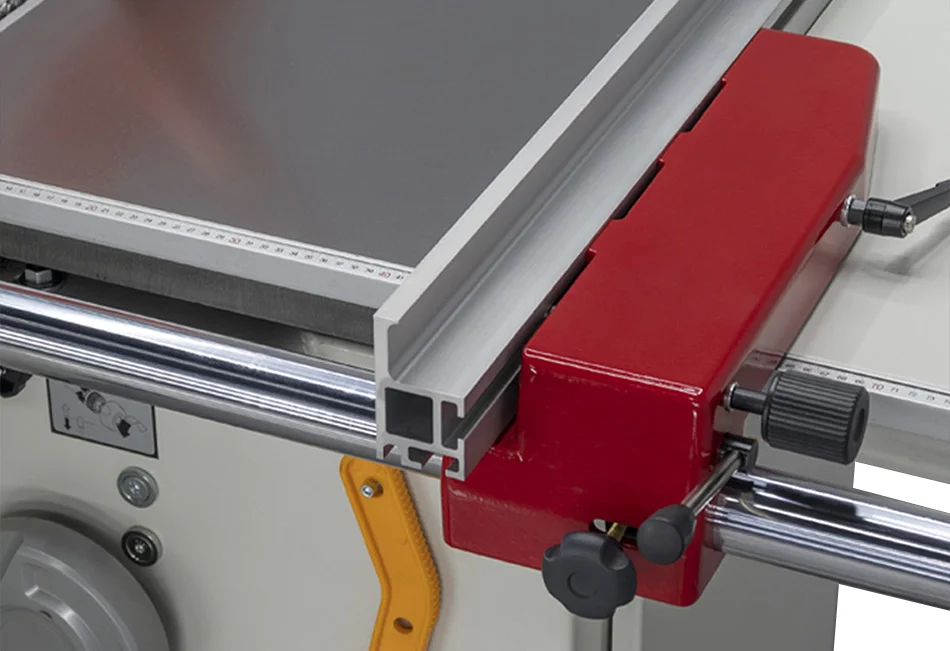

Rip Fence

Control Panel

Blade Guard
