CNC ROUTER

FORTE 15CR

Click ‘Get Free Quote’ to customize

Smart Technology. Industrial Strength. Precision in Every Cut.

High-performance CNC router with 1500×3000mm area, rigid steel frame, precision guides, powerful spindle for accurate sheet processing.

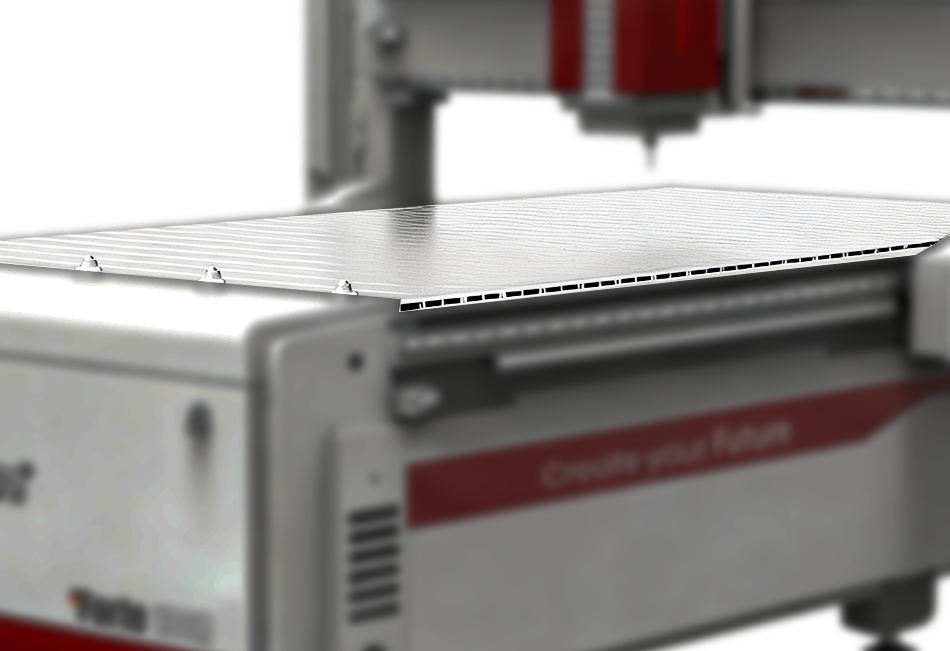

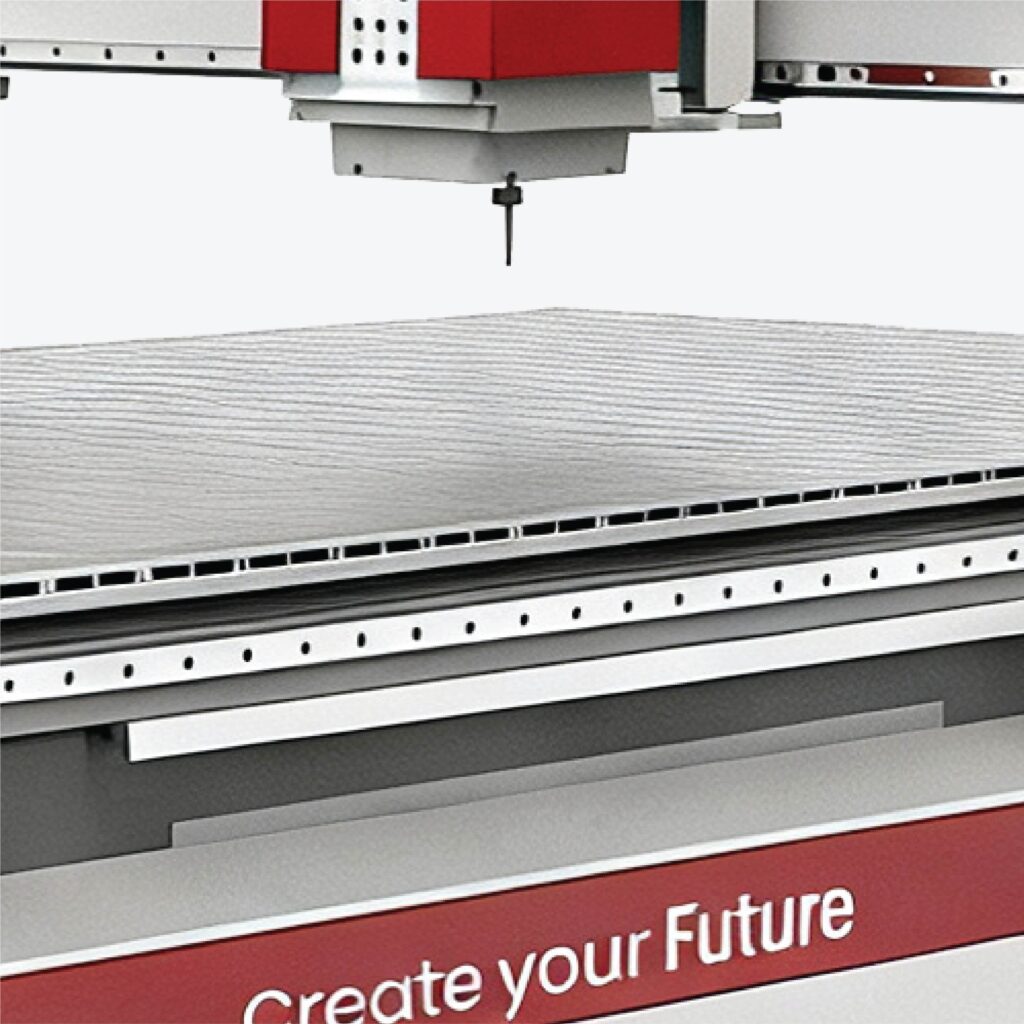

Large Working Area

The FORTE 15CR features a 1500 × 3000 × 200 mm working area, ideal for full-size sheets. It enables efficient cutting, carving, and shaping without repositioning, saving time and boosting productivity.

High-Speed Performance

Designed for speed and precision, this CNC router delivers smooth, accurate performance in continuous production. Its advanced motion system ensures consistent results in woodworking, signage, and panel processing tasks.

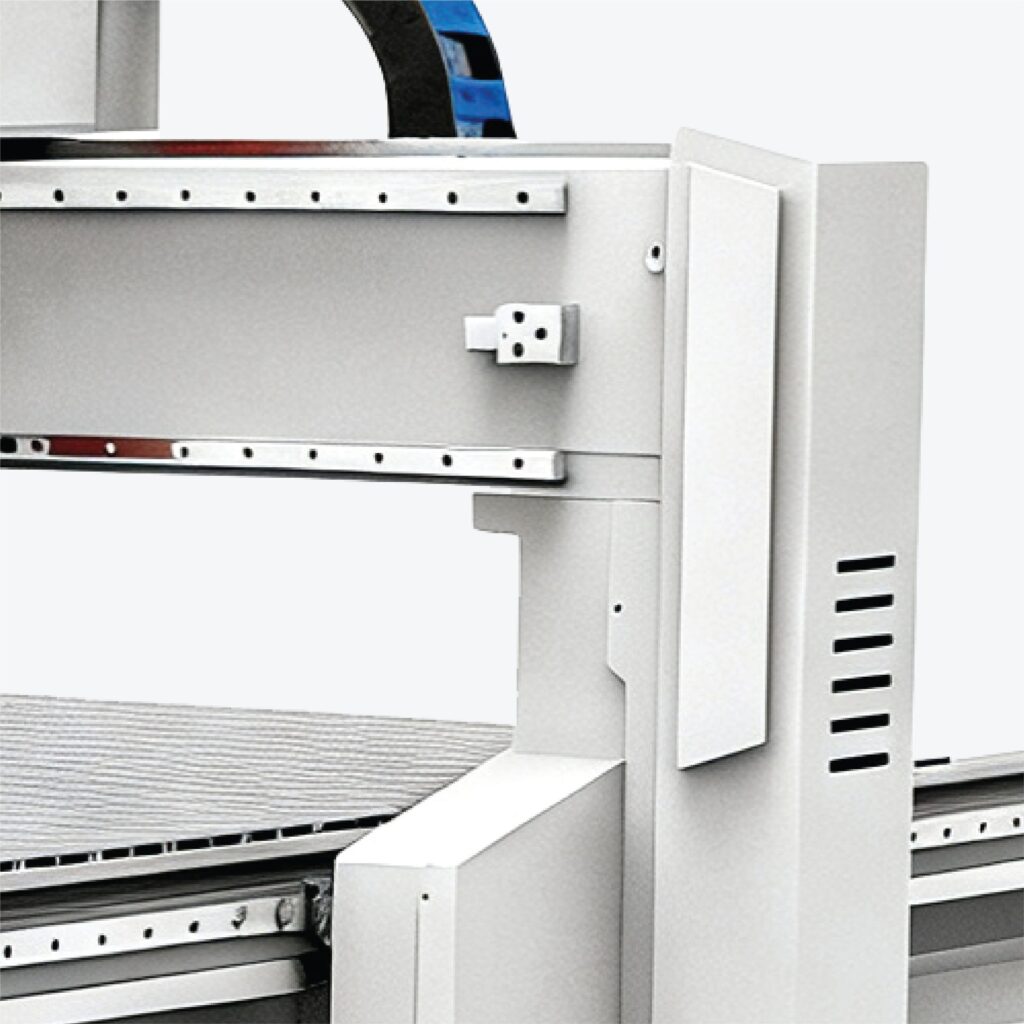

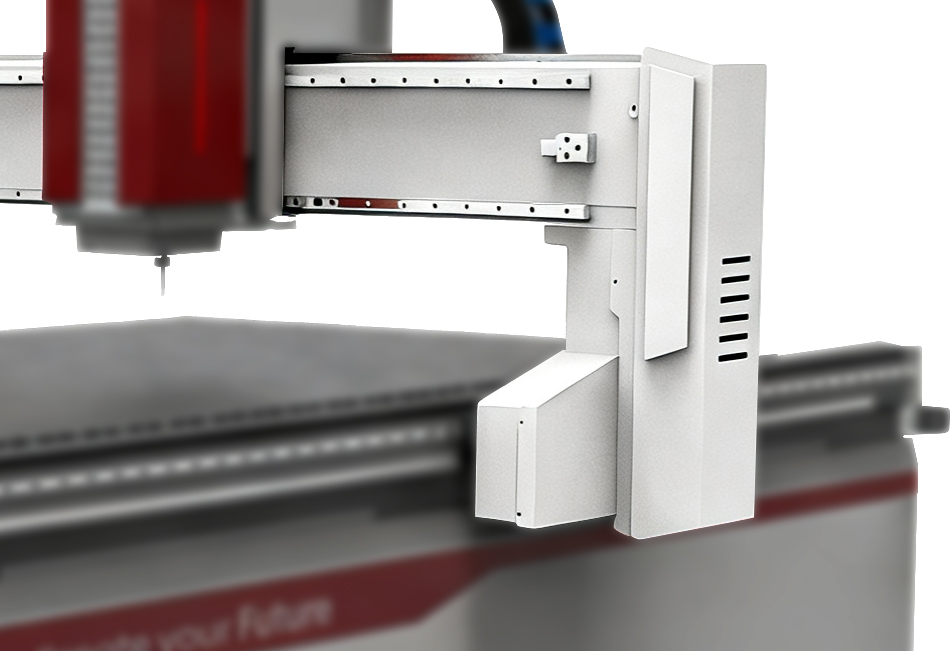

Rigid Steel Frame Build

Built with a heavy-duty steel frame, it delivers strong stability and vibration control, ensuring smooth finishes and lasting durability in industry.

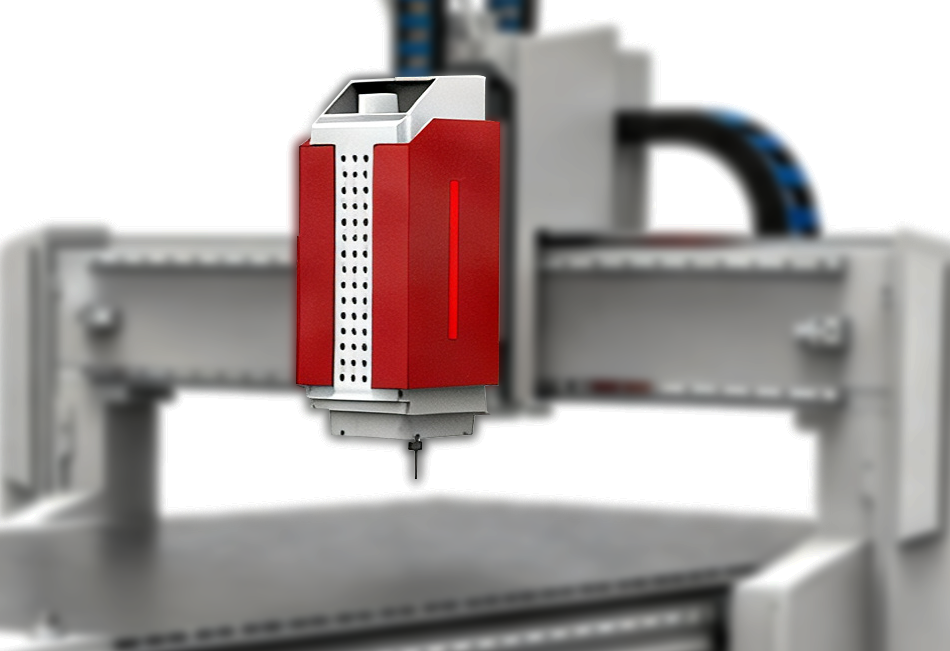

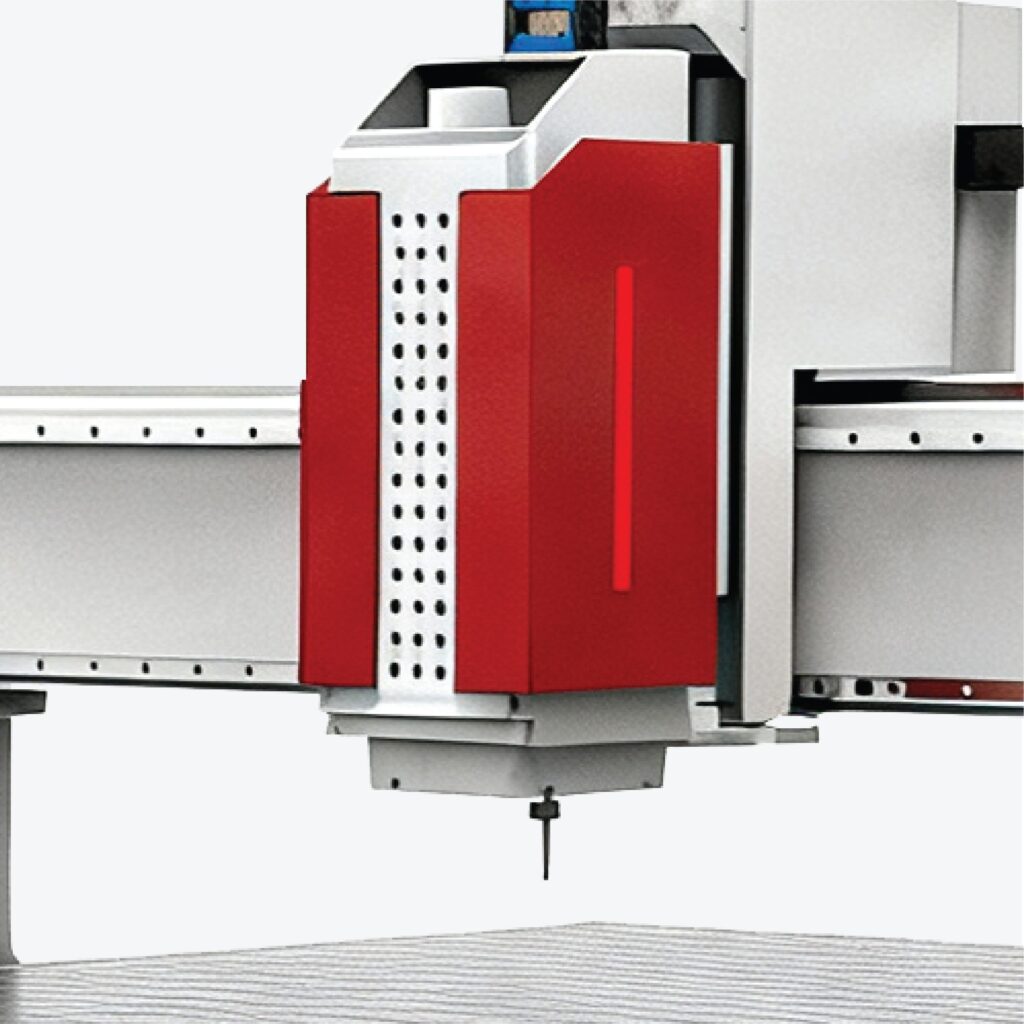

Precision Motion System

Equipped with precision linear guides and a powerful spindle, the FORTE 15CR guarantees smooth motion and reliable cutting performance. It processes wood, MDF, plywood, acrylic, and composites with accuracy.

Benifits

Fast cutting and smooth motion improve workflow and output speed.

High Productivity

Fast cutting and smooth motion improve workflow and output speed.

Large Work Area

1500 × 3000 × 200 mm table handles full sheets easily and efficiently.

Strong Construction

Rigid steel frame ensures stability and long service life.

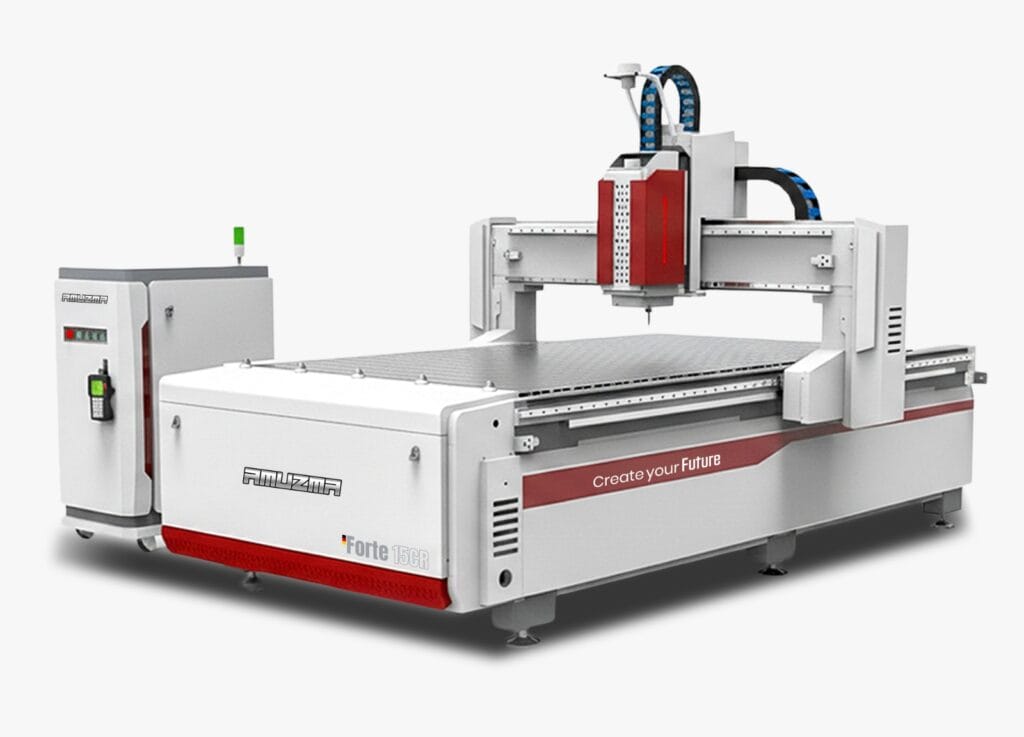

CNC ROUTER FORTE 15CR

The FORTE 15CR is a high-performance CNC router designed for woodworking, sign-making, and panel processing, delivering speed, precision, and reliable results across wood, MDF, plywood, acrylic, and composite materials.

Add to quote

Product catalogue

Full catalogue

Operational

Wood & Panel Materials
Plastic Materials
Composite Materials
Aluminium

Wood & Panel Materials

Designed for industrial use, the machine supports long working hours with minimal vibration, ensuring stable output and reliable performance in continuous production environments.

High-Speed Cutting Operation

The machine performs smooth and high-speed cutting with consistent feed rates. Its advanced motion control system ensures accurate tool paths and efficient material processing.

Automatic

Equipped with precision linear guides and servo motors, the router maintains stable and controlled movement across X, Y, and Z axes for accurate carving and shaping.

Multi-Material Processing

The FORTE 1325CR efficiently cuts wood, MDF, plywood, acrylic, and composites. Spindle speed adjustment allows optimized performance for different materials.

Continuous Production Capability

Designed for industrial use, the machine supports long working hours with minimal vibration, ensuring stable output and reliable performance in continuous production environments.

Specifications

Aluminum Profile
• Table + T slots : 1500 × 3000 × 200
Control System : Richauto DSP A11
Air-cooling Spindle : HQD 6.0 kW
Inverter : Delta 7.5 kW
Servo Motor and Driver : Delta 750 W
China Oubang Reducer —

Square Rails Taiwan HIWIN : 25 / 25 / 25 mm
Helical Rack : PCRCH 1.5
Taiwan Ball Screw on Z Axis : Taiwan 2505
Auto Lubrication —

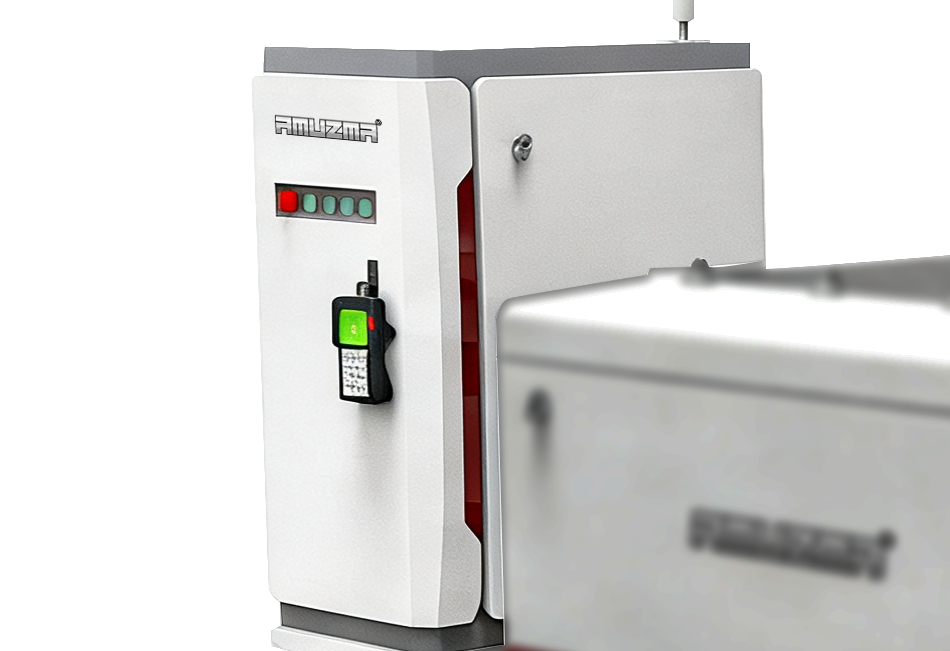

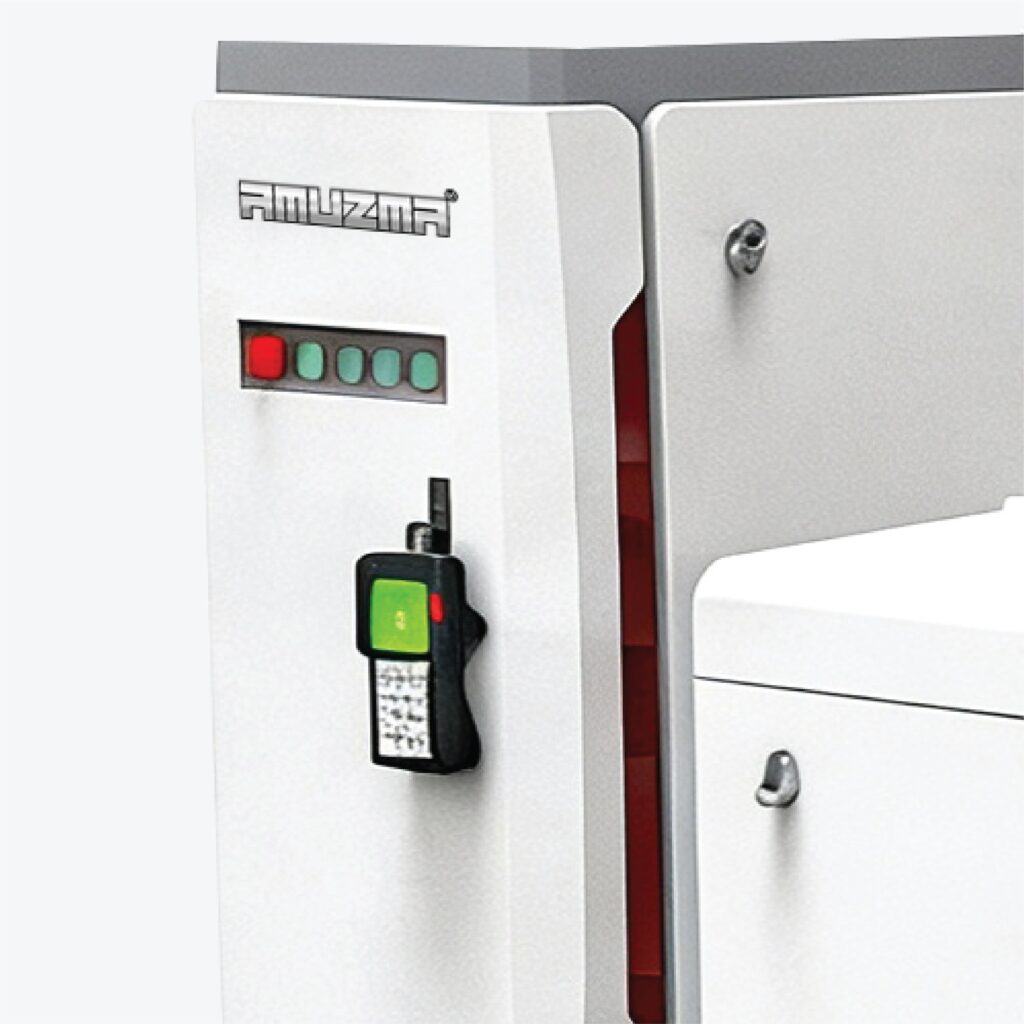

Independent Control Cabinet : D06
Autonics Limit Switch —
Schneider Electrical Components —

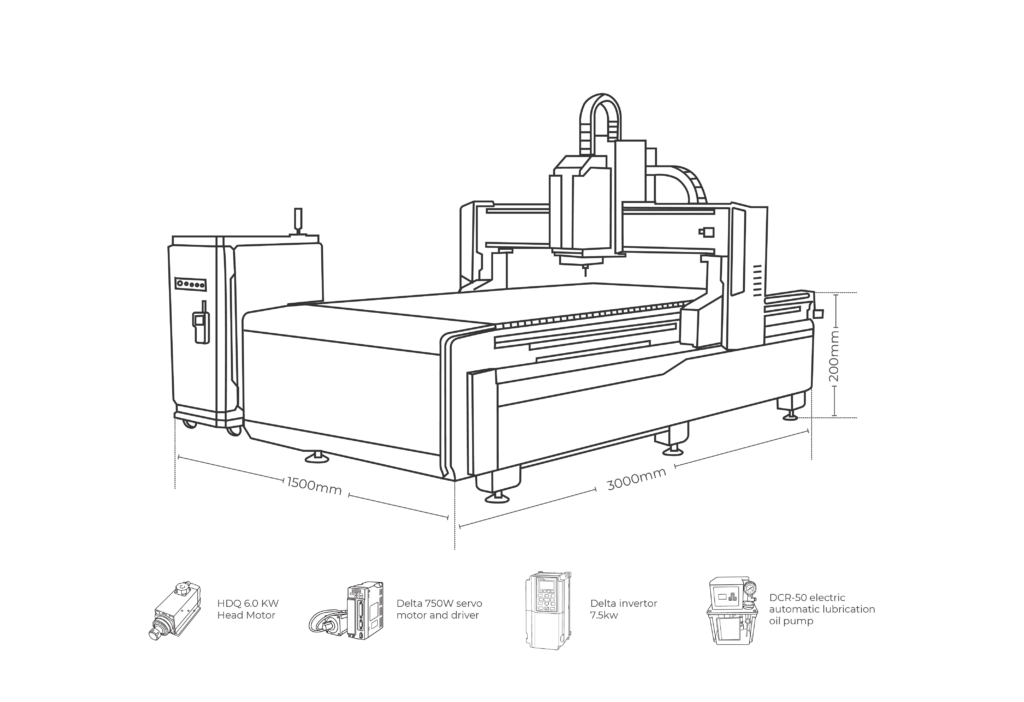

Machine Dimensions & Working Area

The FORTE 15CR features a spacious 1500 × 3000 mm working area, ideal for full-size sheet processing. Its robust structural design ensures stability while accommodating large panels and complex machining tasks efficiently.
